overhead traveling design realizes flexible operation without ground obstacles;
ultra-long span coverage adapts continuous multi-station production;
precise electric control ensures stable and uniform molten metal pouring;
Truss Suspended Pouring Manipulator, also widely known as overhead manipulator, is a semi-automatic overhead mounted automatic pouring equipment specially developed for large-scale and long-span foundry molten metal pouring operations, featuring overhead traveling, full coverage and zero ground occupation.
The overhead manipulator is a specialized overhead rail casting manipulator designed for high-temperature molten metal pouring in iron and steel foundries. Different from conventional ground-based industrial manipulators, it adopts top truss suspension installation and is dedicated to standardized and safe liquid pouring procedures in modern casting workshops.
As a truss-mounted suspended pouring manipulator, the whole equipment is fixed on customized overhead truss rails installed above the production line. All traveling and pouring mechanisms are suspended in the air, requiring no ground foundation fixing or floor occupation, which greatly optimizes the internal space layout of the foundry.
The equipment operates in a semi-automatic mode. Operators control the overhead rail mounted manipulator for casting to complete overall line traveling, ladle holding, positioning and tilting pouring. The mechanical structure ensures running stability, while manual operation retains flexible adjustment capability to cope with complex mold layouts and diverse pouring demands.
It is positioned as professional overhead mounted industrial manipulators for large and medium-sized foundry factories, long assembly lines and multi-station continuous pouring scenarios. It effectively makes up for the shortcomings of limited stroke and space occupation of floor-type pouring machines, and is an ideal upgrade solution for automated foundry production lines.
This semi-automatic pouring equipment relies on overhead truss rails to achieve longitudinal and transverse floating movement. In actual production, workers control the equipment to travel to the ladle picking position and stably clamp the molten metal ladle. After positioning accurately above the mold gate, the manipulator completes stable tilting and quantitative molten metal pouring through electric control. Once single pouring is finished, operators control the equipment to return to the liquid taking station for refilling. The whole process repeats cyclically, combining mechanical stability and manual flexibility to ensure continuous and orderly pouring operation.
The equipment consists of three pars:

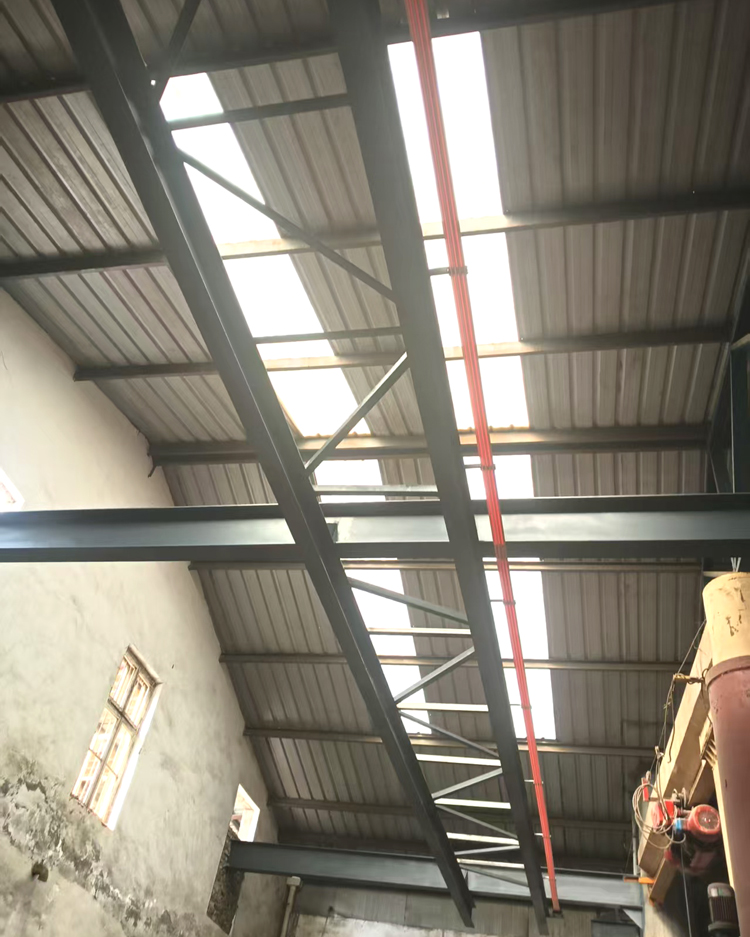

3 Beams

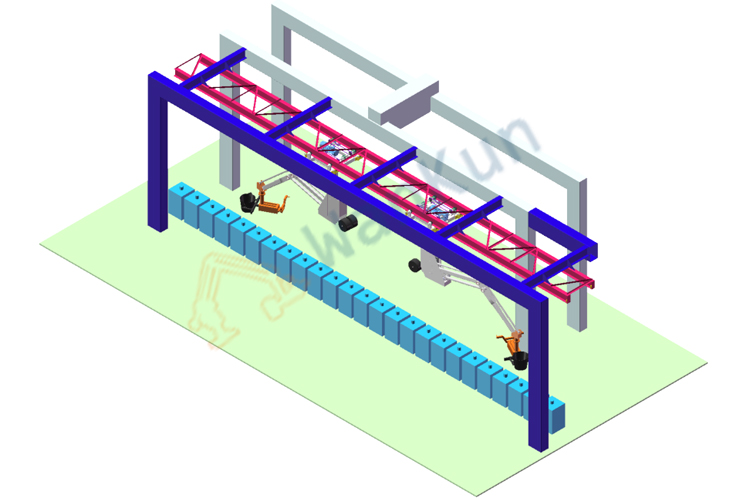

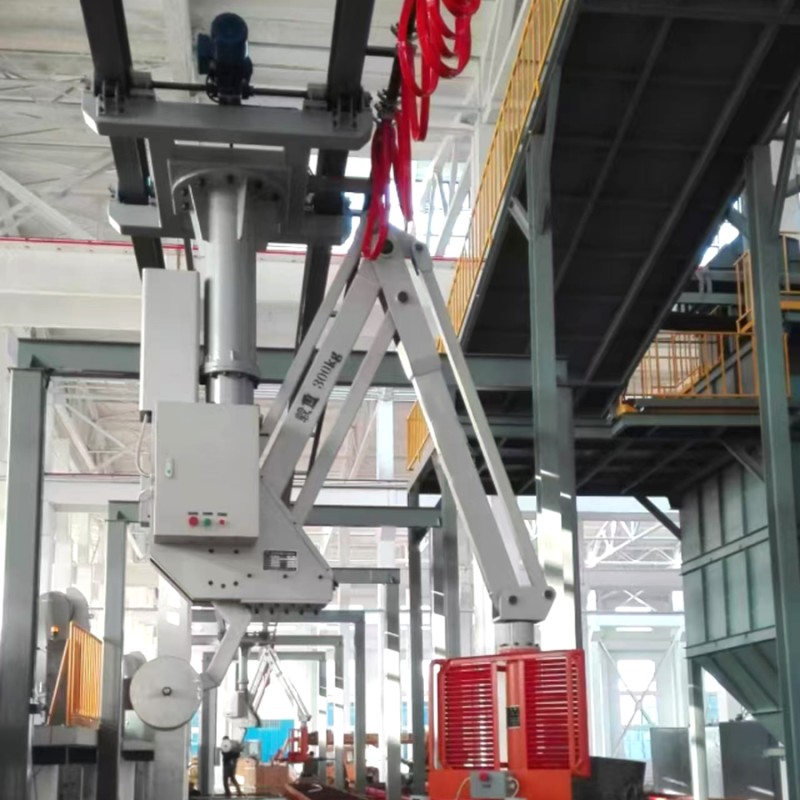

Truss-mounted suspended pouring manipulator
Travel speed is adjustable by frequency converter, equipped with electromagnetic clutch.
Rotation of the pouring machine is manual.
Forward/backward movement of the ladle is manual.
Tilting of the ladle is manual.
Electric mobile platform
The machine adopts PLC stepless speed control, ensuring smooth start, stop and operation.The speed can be adjusted freely (high or low), reducing vibration and providing high safety.
The truss-mounted suspended pouring manipulator features a reasonable structural design, which can achieve balanced static holding at any position,reducing the labor intensity of operators and improving safety.
| Maximum turning radius | 3500 mm |
| Minimum turning radius | 700 mm |
| Lifting stroke | 0-1500 mm |
| Ladle capacity(minimum) | 200 kg |
| Capacity | 300KG |
| ladle with tea spout | Customized |
| Double-rail span | 900 mm |
| Platform dimensions | 1000 mm x 900 mm, for transverse movement. |

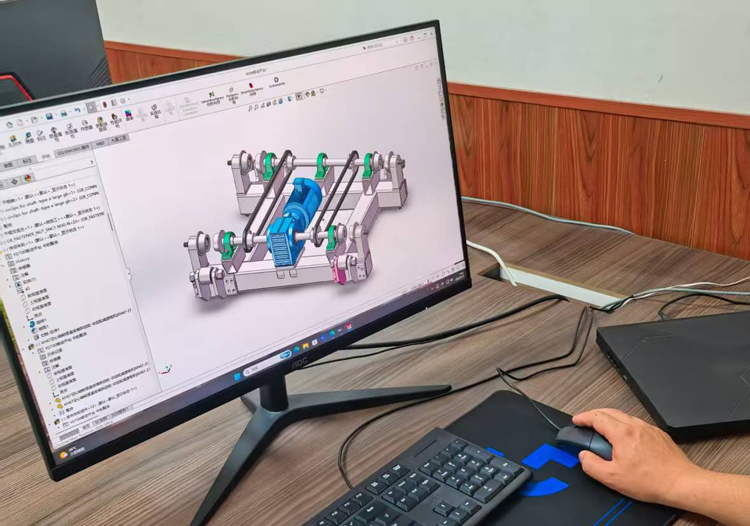

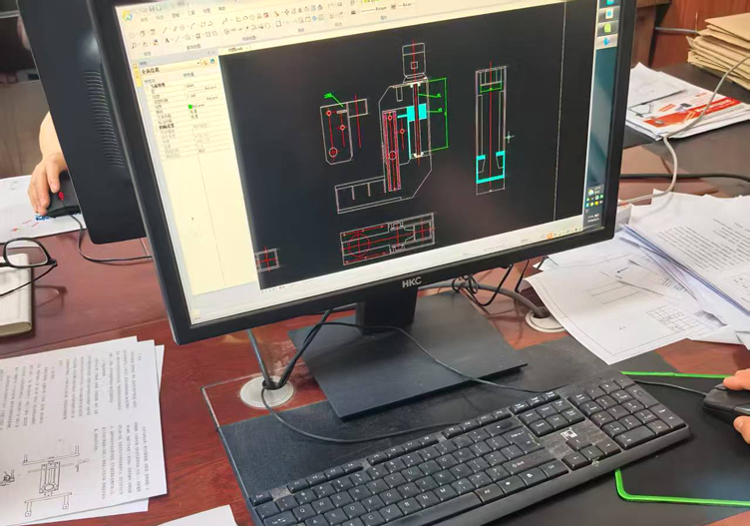

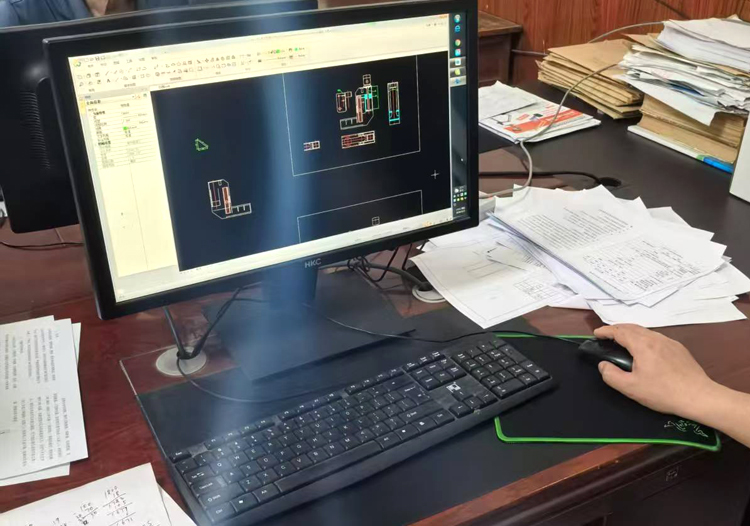

We possess independent overall structural design and customized development capabilities for overhead mounted industrial manipulators. According to customers’ actual workshop height, production line length, station layout and molten metal load demands, our technical team can complete personalized truss structure design, stroke matching and safety configuration optimization. We can also adjust control logic and protection standards according to different casting processes, ensuring each set of equipment adapts to customers’ unique production conditions.
We support full-size and full-function personalized customization of overhead manipulator. Customers can adjust the overhead truss span, left and right traveling stroke, up and down lifting height and load bearing capacity according to workshop parameters. In addition, we can optimize high-temperature protection grades, upgrade safety configurations and adjust operation modes according to actual casting processes. All customized solutions are designed based on on-site working conditions to ensure targeted matching with customer production lines.
Is the truss suspended pouring manipulator suitable for long assembly lines?
-
Yes, it is specially designed for long-span and multi-station assembly lines.
Does overhead installation affect workshop operation?
-
No. The overhead suspension structure does not occupy any ground space and will not interfere with vehicle passing, mold replacement and daily workshop logistics. It effectively optimizes the overall space utilization rate of the foundry.
Can the span and stroke be customized according to my factory size?
-
Fully customizable.
Is the suspended equipment safe in high-temperature foundry environments?
-
Yes. The equipment adopts overall high-temperature insulation and dust-proof protection design.
Is it easy for new workers to operate this pouring machine?
-
Very user-friendly. The semi-automatic electric control system adopts a simplified operation interface. New operators can master basic pouring and traveling operations after short-term training. We provide complete operation manuals and technical guidance to ensure smooth daily production.
