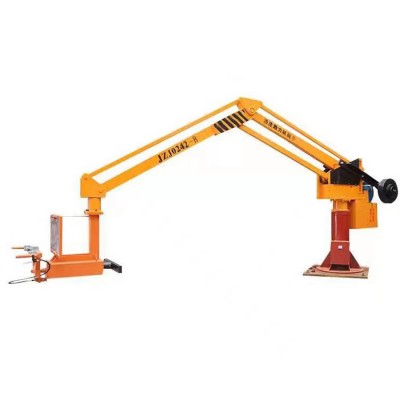

Foundry Pouring Manipulator: Ideal Solution for Metal Molten Pouring
The Foundry Pouring Manipulator is safe, efficient and reliable pouring equipment tailored for modern foundry production. As automated manufacturing becomes mainstream in the casting industry, traditional manual pouring methods can no longer meet standardized and high-output production demands. As a professional manufacturer of industrial manipulator and pouring machinery, we deliver high-quality pouring equipment that helps foundries eliminate manual operation risks, stabilize casting quality and achieve consistent mass production.
Traditional manual pouring risks
Traditional molten metal pouring has long been one of the most challenging processes in foundry workshops. Manual pouring requires workers to operate close to high-temperature molten liquid, exposing operators to splashing, scalding and high-temperature radiation risks. In addition, manual operation relies heavily on personal experience, resulting in inconsistent pouring volume, unstable flow control and uneven mold filling. These problems easily cause common casting defects such as porosity, shrinkage and misrun, leading to high product rejection rates. Furthermore, long-term manual pouring brings physical fatigue, restricting continuous production and causing unstable output and rising labor costs. In response to these industry pain points, the Foundry Pouring Manipulator has become the ideal alternative to replace manual work and standardize molten metal pouring procedures.
Why Choose Foundry Pouring Manipulator
Adopting automated pouring machinery effectively isolates operators from high-temperature working areas. Workers only need to control the equipment remotely, avoiding direct contact with molten metal and high-temperature molds. This greatly reduces workplace safety hazards and complies with modern industrial safety management standards, creating a safer and more standardized workshop environment.
Different from unstable manual operation, professional pouring equipment realizes fixed-position and quantitative pouring through precise mechanical control. It maintains stable liquid flow rate and consistent mold filling volume in each cycle, effectively reducing casting defects caused by human errors. Stable pouring accuracy significantly improves finished product qualification rate and ensures uniform quality of batch castings.
Automated pouring cycles are fixed and sustainable, without interruption caused by worker fatigue or shift changes. The Foundry Pouring Manipulator can coordinate with assembly line rhythm to achieve continuous and rhythmic pouring operations, greatly improving overall workshop throughput and shortening production cycles for mass casting orders.
Investing in industrial manipulator pouring equipment reduces reliance on skilled pouring workers, lowering long-term labor and training costs. Meanwhile, stable pouring quality reduces waste products and material loss. Continuous and standardized operation also optimizes production scheduling, helping foundries cut comprehensive production costs and improve overall profit margins.
Designed specifically for foundry working conditions, this type of pouring machinery features high-temperature resistance, dust resistance and structural stability. It can operate stably for a long time in harsh environments with high temperature, dust and industrial vibration, adapting to most conventional foundry workshop conditions without frequent failures or performance degradation.
Main Types of Pouring Manipulators
Mechanical Pouring Manipulator
The mechanical pouring manipulator adopts pure mechanical transmission structures, including gears, chains and screw drive systems. It features simple structure, intuitive operation logic and low maintenance difficulty. This equipment delivers outstanding positioning accuracy and stable low-speed movement, making it highly suitable for medium and small molten metal pouring tasks and precision casting scenarios that require strict dimensional consistency.
Hydraulic Pouring Manipulator
The hydraulic pouring manipulator relies on a hydraulic power system to drive overall movement. It provides powerful and stable output, supporting large load-bearing capacity and long-stroke operation. It is more adaptable for heavy-duty pouring work with large molten metal volume, featuring stable starting and stopping performance and strong impact resistance during high-load cyclic operation.
Products Description
The Foundry Pouring Manipulator operates with a semi-automatic working mode that relies on manual operation to complete standardized pouring procedures. Operators control the equipment stably to grip and support the molten metal ladle, then precisely drive the pouring arm to align with the mold gate. By adjusting the tilting angle steadily, the equipment completes quantitative and uniform molten metal pouring into the mold. After finishing a single pouring process, workers control the manipulator to reset and return to the designated position to reload molten metal. This cyclic semi-automatic operation repeats continuously, combining human flexibility with mechanical stability to avoid the instability of full manual pouring and adapt to diverse and flexible foundry production needs.
Customization Service
We provide full-range customized solutions for pouring equipment according to customer on-site conditions. Customizable items include load capacity, working stroke, pouring angle range, control mode and installation structure. Our technical team evaluates customers’ production line size, workshop space, molten metal volume and process requirements to design targeted manipulator solutions. From scheme confirmation and production to on-site commissioning, we provide one-stop customized service to ensure the equipment perfectly matches local production conditions.
Everything You Need to Know
Is the pouring manipulator easy to operate for new workers?
Yes. The equipment adopts a humanized and simplified control interface with intuitive operation logic.
Can you customize the equipment according to my production line size?
Absolutely. We support personalized customization based on actual workshop space, line layout and process parameters. All structural dimensions and working ranges can be adjusted to fit your on-site production conditions perfectly.
Which type is better for large-volume molten metal pouring?
The hydraulic pouring manipulator is more suitable for large-volume molten metal pouring.
Can this equipment work continuously in high-temperature workshops?
Yes. All key components are treated with high-temperature and heat-insulation protection.
